Standing Rigging

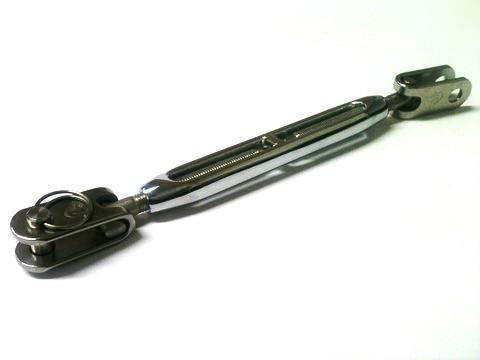

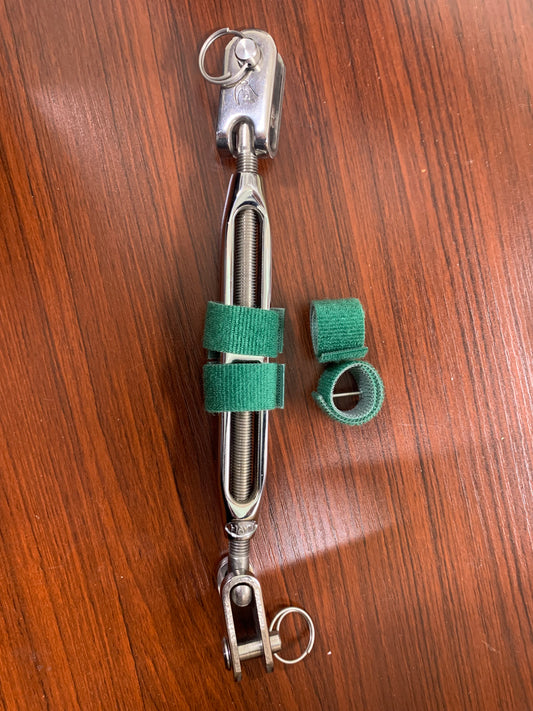

Our standard standing rigging is the Pearson design and length. We only offer open-style turnbuckles.

Pearson Measurements:

forestay: 25'   2 - 3/4"  (clevis pin to clevis pin, length not including turnbuckle)

backstay: 31'  4"   (clevis pin to clevis pin, length not including turnbuckle)

upper stays: 24'  10"   (clevis pin to clevis pin, length not including turnbuckle)

forward lower stays:  11'  10 - 3/4"   (clevis pin to clevis pin, length not including turnbuckle)

aft lower stays:  12'  0"  (clevis pin to clevis pin, length not including turnbuckle)

Custom lengths must be ordered via email with exact-needed measurements provided. Alternatively, you can send us your existing rigging and we will duplicate it exactly, then send it to you. Contact us at info@ensignspars.com.







These are the ends of our shrouds and stays. The top left is an eye; the bottom right  is a fork.
